| SPECIFICATIONS | ||||||||
| MODEL | CH7152AB22 | CH7152AB24 | CH7152AB62 | CH7152AB64 | ||||
| DIMENSIONS | ||||||||
| Overall length (mm) | 4286 | |||||||
| Overall width(mm) | 1815 | |||||||
| Overall height(mm) | 1665 | |||||||
| Wheelbase (mm) | 2560 | |||||||
| Tread | Front (mm) | 1557 | ||||||
| Rear(mm) | 1561 | |||||||
| Suspension | Front (mm) | 936 | ||||||
| Rear(mm) | 790 | |||||||
| Minimum turning radius (m) | 5.45 | |||||||
| Minimum ground clearance(mm) | 145 | |||||||
| WEIGHT | ||||||||
| Curb weight(Front axle/Rear axle/Vehicle)( kg) | 1250 | 1250 | 1270 | 1270 | ||||
| Gross vehicle weight(Front axle/Rear axle/Vehicle)( kg) | 1675 | 1675 | 1695 | 1695 | ||||
| ENGINE | ||||||||
| Model | A151 | |||||||
| Type | DOHC | |||||||
| Piston displacement ( ml) | 1499 | |||||||
| Bore x stroke (mm) | 75×84.8 | |||||||
| Compression ratio | 10.5:1 | |||||||
| Maximum output( kW/rpm) | 85/6000 | |||||||
| Maximum torque(Nm/rpm) | 142/3800 | |||||||
| Maximum speed(Km/h) | 165 | 160 | ||||||
| TRANSMISSION | ||||||||
| Type | MT | AT | ||||||
| Gear ratio | 1st | 3.462 | 2.875 | |||||
| 2nd | 1.913 | 1.568 | ||||||
| 3rd | 1.31 | 1 | ||||||
| 4th | 1.03 | 0.697 | ||||||
| 5th | 0.838 | - | ||||||
| Reverse | 3.231 | 2.3 | ||||||
| Final gear ratio | 4.529 | 4.375 | ||||||
| CHASSIS | ||||||||
| Suspension | Front | MacPherson independent suspension | ||||||
| Rear | H type torsion beam suspension suspension | |||||||
| Brakes | Front | Disc | ||||||
| Rear | Disc | |||||||

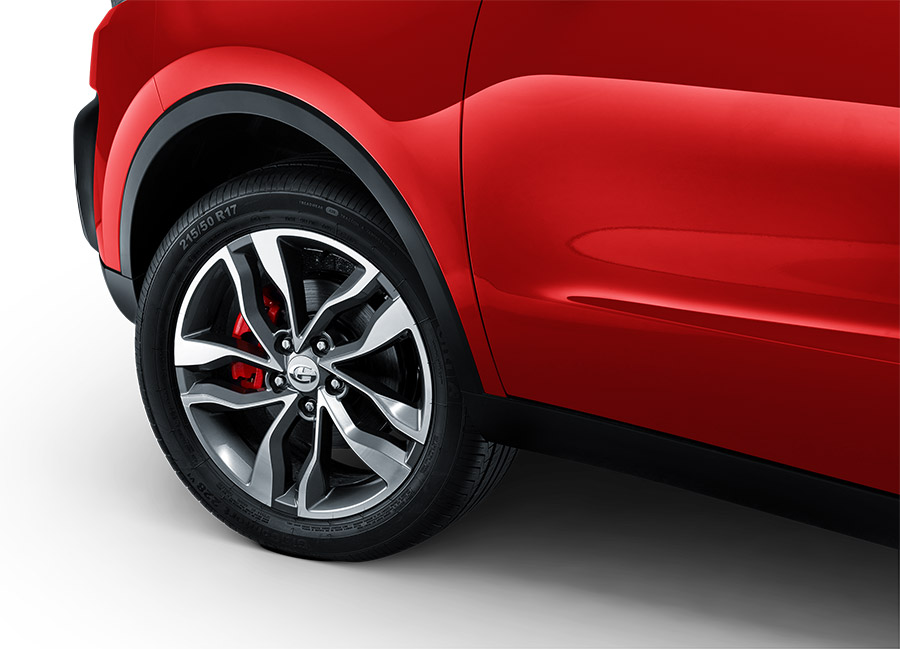

| Tyres | 205/60R16; 215/50R17 | |||||||
| CAPACITY | ||||||||
| Seating | 5 | |||||||
| FUEL TANK | 46L | |||||||
